MD54 Encoder Module with Digital LED Display

MD54 Encoder Module with Digital LED Display

  • Series:
  • Format:See the following profile
  • Specifications

    Module model:

    MD54 series

    Applications:

    Steaming and baking machine, household appliances and other electronic products;


    Product Features:

    Multifunctional knob module that integrates digital tube display, rotation and pressing;

    Main Specifications:

    Dimensions: 54mm;
    Number of detent: 30;
    Pulses: 15
    Working temperature: -20℃~70℃;
    Rotational life: 30,000 cycles Min;
    Push-on switch life: 30,000 cycles Min;

    MD54 Product Specifications

    ONE、MECHANICAL CHARACTERISTIC

    1. Rotational torque: 15±7mN.m
    2. Total rotational angle: 360°
    3. Number of detent: 30
    4. Press switch travel: 1.3±0.2mm
    5. Switch operating force: 250±80gf

    TWO、ELECTRICAL CHARACTERISTIC

    1. Insulation resistance: 100MΩ
    2. Dielectric voltage: 1 Minute at AC 300V
    3. Pulses: 15

    THREE、ENDURANCE CHARACTERISTIC

    1. Rotational life: 30,000 cycles Min

    2. Press switch life: 30,000 cycles Min

    Note: In this catalog, if some parameters or drawings are different from the "Approval sheet", it's subject to the "Approval sheet".

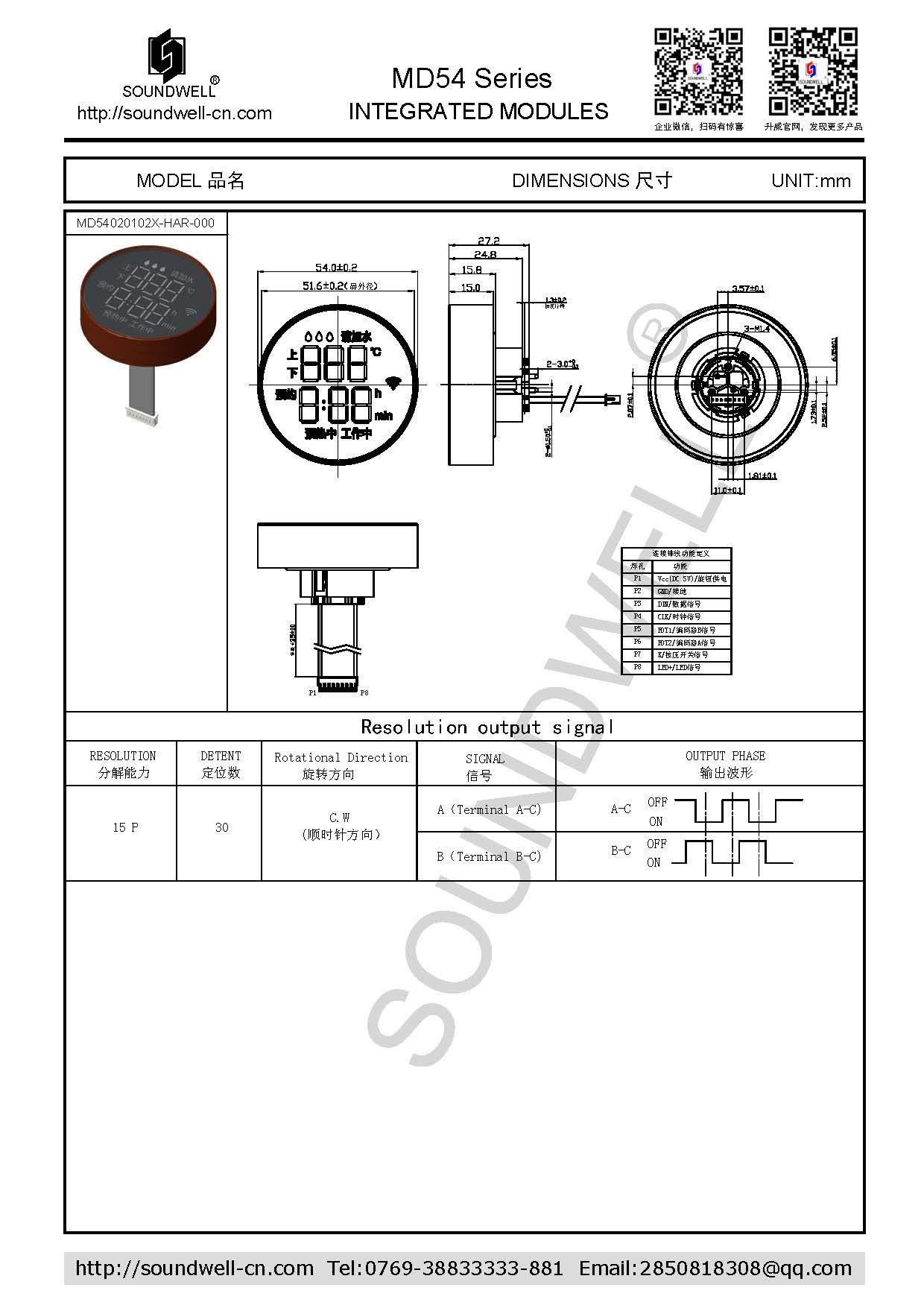

    /uploads/images/MD54.jpg
